Submerged Machinery Repair Shops ULTRA SUB-1250 Arc SAW Welding Machine

1 set
MOQ
Submerged Machinery Repair Shops ULTRA SUB-1250 Arc SAW Welding Machine
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Condition: New
Machine Type: Welding Manipulator
Applicable Industries: Machinery Repair Shops, Farms, Construction works , Energy & Mining
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: Gearbox, Motor
Warranty: 1 Year
Key Selling Points: Low Maintenance Cost
Model: ULTRA SUB-1250
Brand: TAYOR
Rated Input Power (KVA): 72
Output Current Range(A): 250-1250
Rated Output Voltage(V): 44
40℃ Duty Cycle (%): 100@1250A
Suitable wire diameter range (mm): 3.0-6.0
Efficiency (%): 83
Protection Class: IP21S
Insulation Class: H
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: None
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Video technical support, Online support
기본 정보
Model Number: ULTRA SUB-1250
결제 및 배송 조건
Packaging Details: 1PC/CTN
Supply Ability: 20000 Piece/Pieces per Month
제품 설명
Products Description

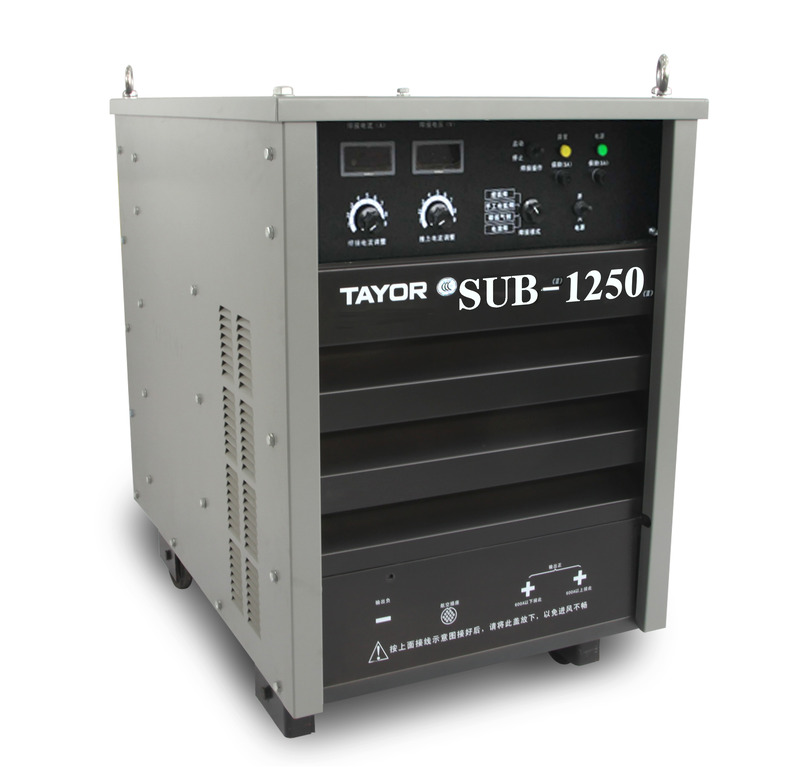

ULTRA SUB-1250 Submerged Arc Welding Machine

Welding Technique
Submerged Arc Welding, Carbon Arc Gouging
Manual Arc Welding
Electroslag Welding
ULTRA SUB-1250 Submerged Arc Welding Machine SAW welder

THE ULTRA SUB-1250 have excellent welding characteristics throughout the entire current and voltage range. The starting and
reignition characteristics are particularly good. These power sources demonstrate good arc stability at both high and low arc
Voltages. The continuously variable voltage control permits very precise adjustments of welding parameters.

Characteristic
1. The main return circuit adopts thyristor rectification circuit with double reversed star shape interphase reactor.
2. It is high reliable with multiple protection function
3. AC contactor has no load current pull-in, with very small impact current.
4. With compensation function on voltage fluctuation; effectively compensate the grid voltage fluctuation.
5. With ventilation structure.
6. Multi-characteristic output makes it is suitable for many kinds of welding technique, such as electroslag welding, submerge
arc welding, carbon arc gouging and manual welding, etc.
Input Voltage
380V 3ph 50/60Hz
Rated Input Power (KVA)
72
Output Current Range(A)
250-1250
Rated Output Voltage(V)
44
Duty Cycle (40°C)
100@1250A
Suitable wire diameter range (mm)
3.0-6.0
Power factor cosΦ
0.8
Protection Class
IP21S
Dimensions (mm)
980X670X1000
Weight (KG)
510
Exhibition
APPLICATION
Factory and workshop
