홈 /제품 소개/가스 아크 웨일더/8mm Perfect Semi-automatic Welder/MIG MIG Welding Machine PowerMIG-230 Gas-Protected Mig Welders Aluminum Arc Welding Machine

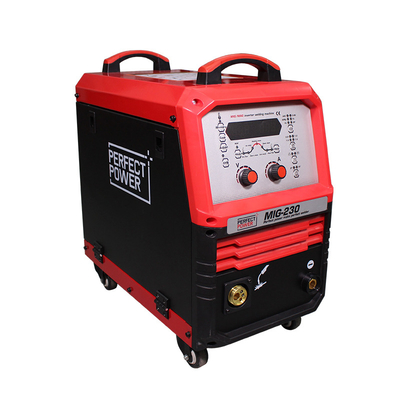

8mm Perfect Semi-automatic Welder/MIG MIG Welding Machine PowerMIG-230 Gas-Protected Mig Welders Aluminum Arc Welding Machine

1 Piece
MOQ
8mm Perfect Semi-automatic Welder/MIG MIG Welding Machine PowerMIG-230 Gas-Protected Mig Welders Aluminum Arc Welding Machine
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 3 months
Model Number: MIG-230
Max Wire Diameter: 1.2mm
Max Material Thickness: 8mm
Min Material Thickness: 0.33mm
Phase: 1PHP 220V ±10% or 3PH 380V ±10%
Weight: 35kg
Dimension (L x W x H): 60*38*64 cm
Power input (ACV): 1PHP 220V ±10% or 3PH 380V ±10%
Power input frequency (Hz): 50/60
Rated input capacity (KVA): 6.4
Rated current input (A): 29/9.8
Rated open circuit voltage (DC): 65
Welding current range (A): 10-220
Rated duty cycle: 60
Welding wire diameter(mm): 0.8/1.0/1.2
Wire Feeding Speed: 2-18
Wire Melting Type: short circuit transfer
인증: CCC,CE,ISO9001
기본 정보
인증: CCC,CE,ISO9001
Model Number: MIG-230
결제 및 배송 조건
Packaging Details: MIG MAG IGBT Inverter Welding Machine
제품 설명
FEATURES AT A GLANCE
Product Parameters
Model
MIG-230
Power input AC(V)
1PHP 220V ±10% or 3PH 380V ±10%
Power input frequency (Hz)
50/60
Rated input capacity (KVA)
6.4
Rated current input (A)
29/9.8
Rated open circuit voltage DC(V) :
65
Welding current range (A)
10-220A
Rated duty cycle (60%/100%)
220A/170A
Welding wire diameter(mm)
Aluminum φ1.0/φ1.2; Other metals φ0.8/φ1.0
IP grade
IP21
Insulation grade
F
Cooling method
Air cooling
Temperature in working environment
-15~40℃
Wire feed speed (m/min)
2M-18M
Efficiency (%)
85
Power factor (cosφ)
0.93
Weight (kg)
35
Package size (cm)
60*38*64
Company Profile

ABOUT PERFECT POWER WELDERS

Perfect Power Welders develops, manufactures, sales and offers relevant service for modern welding equipment, covering an area of 12,000㎡.
With a professional technical team, who has more than 20 years of experience in developing digital inverter welding source, the company has obtained many innovative national invention patents, utility model patents and design patents on the digital inverter GMAW welding machine.
The double-pulse welding software technology for the very thin sheet is in the lead in the welding equipment industry and has acquired multiple software copyrights, which enables the welder to weld a thin aluminum sheet of 0.35mm. The stability and welding performance of our welder far exceeds that of similar products in China.
Perfect Power Welders strictly implements ISO9001:2000 management system and "CCC" standard. Some products have met CE, ROHS, and CTICK certification requirements, and have been widely used in the power, petrochemical, petroleum, shipbuilding, automotive, steel structure, machinery manufacturing, hardware processing and other domestic and overseas industries and fields.

FAQ
Q1: Can I have a sample for testing?
A: Yes, we can support free sample.

Q2: Can I add my logo on the boxes/cartons?
A:Yes, OEMand ODM are available from us.

Q3: What are the benefits of being a distributor ?
A: Special discount marketing protection.

Q4: Doyou have inspection procedures?
A:100% Self-inspection before packing. We provide quality certification for every order.

Q5: Canwe mix items in one 20ft container?
A: Yes.

Q6: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.
Why Choose Us
